Flush Doors

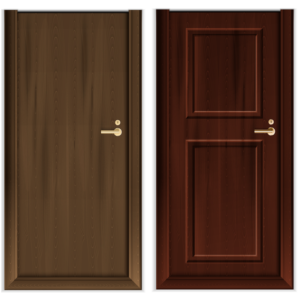

The Benchmark in Plywood Viyaanhaa Enterprises BWP grade flush door is a Viyaanhaa Enterprises product known for its high quality, remarkable finish, and distinctive dimensional stability. It is built of selected high density wood frames and exact battens. It is even built using carefully selected species of timber, which is critical to ensuring a longer lifespan. BWP grade phenol formaldehyde resin was utilized to bond the layers.
Advantages
- Manufactured with high solid content resin for higher bonding.
- Free from corrugation and roughness.
- High screw holding capacity.
- High shock resistance.
- Boiling water proof.
- Smooth surface.
- Lab tested and eco-friendly.
- Zero gap and zero bending.
Get a Free Quote
Technical Specification
| No. | Prescribed Test | ISI Requirement | Obeserved Value |
| 1 | Dimension | Length, Width +-5mm Thickness >= 1mm | Within limit |
| 2 | Squareness | Deviation not more than 1mm on a length of 500mm | deviation below 1mm |
| 3 | General Flatness | Twist, Cupping, Wrapping, not to exceed 6mm | |
| 4 | Local Planeness | Depth of deviation at any point to be less than 0.5mm | Within limit |
| 5 | Impact Indentation Test | Depth of Indentation no to exceed 0.2mm | Within limit |
| 6 | Edge Loading Test | Deflection of edge with max to be less than 5mm | Within limit |
| 7 | Shock Resistance Test | No visible damage after Test | No visible defects |
| 8 | Buckling Test | Initial deflection -< 50mm residual deflection -<5mm | Within limit |
| 9 | Slamming Test | No visible damage after Test | No visible damage |
| 10 | Misuse Test | No deformation after Test | No deformation |
| 11 | Varying Humidity Test | No visible wrapping, twisting or de-lamination | No such defects observed |
| 12 | End Immersion Test | No de-lamination at the end | No de-lamination |
| 13 | Knife Test | Minimum pass standard | Excellent |
| 14 | Flue Adhesive Test | No de-lamination | No de-lamination |
| 15 | Screw Withdraw Test | Load to withdraw screw to be more than 1000N | Load -> 1000 N |
